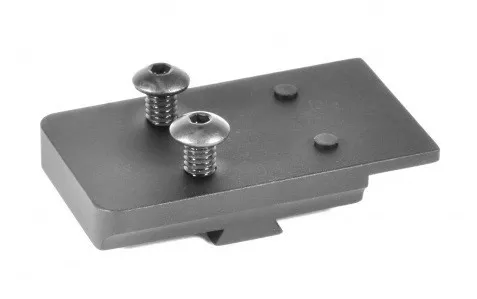

EGW Vortex Razor LPA Sight Mount

Mounting Hardware is Included

This mount does not fit the Vortex Venom or Viper, that mount is available

If you have a Para Elite LS Hunter or Remington R1 10mm Hunter you will need to select specific mount for the Para Elite / Remington.

This mount fits (including but not limited to):Sig Sauer 1911 Stainless Super Target*Sig Sauer 1911 Match Elite*Sig Sauer 1911 Target Full Size*Sig Sauer 1911 Max Full Size*STI with adjustable rear sightsSTI TrojanSTI DVC 3 GunSTI DVC LimitedSTI DVC ClassicSpringfield Range OfficerSpringfield Range Officer Elite TargetSpringfield Loaded TargetRock Island TCM Rock Target FS HC Combo 22TCM / 9MMRock Island Pro Match ULtra 5” – 45 ACPRock Island Pro Match Tac Ultra 6” – 45 ACPRock Island Pro Match Ultra HC – 40S&WRock Island Pro Match Ultra 6” – 10MMRock Island Pro Match ULtra 6” HC – 10MMIver Johnson Eagle XL-SS10Iver Johnson Eagle SS-10Iver Johnson Eagle O.D. GreenIver Johnson Eagle Coyote TanIver Johnson Eagle XL-10 PortedIver Johnson Eagle XL-10Iver Johnson Eagle XL-45 PortedIver Johnson Eagle XL-45acpIver Johnson Eagle LR

*We have found that some Sig Sauer 1911’s with adjustable rear sights use a Kimber Adjustable style rear sight cut. Please measure the distance from the top of the front of the dovetail to the face of the sight cut in your slide. If this measures .43″ you will need this (LPA) mount. If it measures .415″ you will need the Kimber Adjustable.*

Please see our common 1911 dovetail chart if you are not sure which cut you have.

Our red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

Simply remove the rear sight on your gun and replace it with our mount in order to mount your Vortex Razor, C-More RTS or STS red-dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.Minor modification may be neccessary for Rock Islands. Our products should be installed and checked by a qualified and competent gunsmith.

Installation Instructions- Remove the rear sight*- Install the EGW Sight Mount in the dovetail- Tighten set screw (if applicable)- Place the red dot sight on the EGW Sight Mount(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)- Apply blue Loctite to the provided mounting screws- Torque mounting screws to 15in/lbs

The screws that are included with this mount require a 5/64” allen wrench for installation.

Material: 7075 AluminumCoating: Matte Black HardcoatOverall Length: 1.831″Overall Width: 1.062″Dovetail Width: .375″Mounting Hardware: (2) 8-32 Button Head Screws, (1) 8-32 Set Screw)Red Dot Fitment: Vortex Razor, C-More STS, STS2 & RTS2, Sig Romeo 3/3Xl
